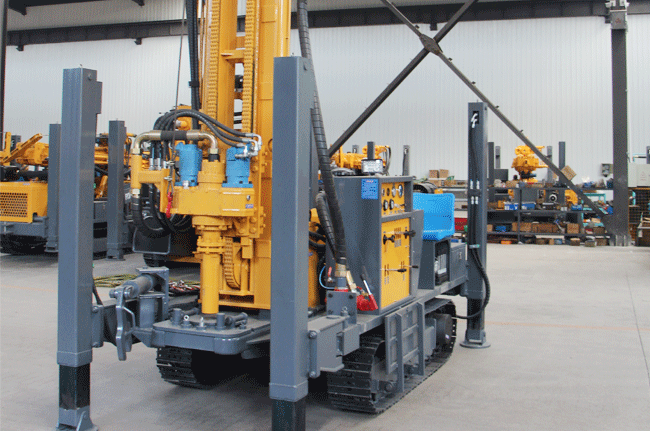

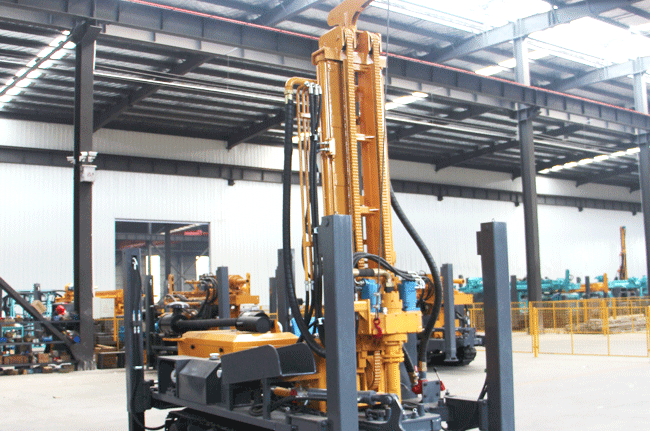

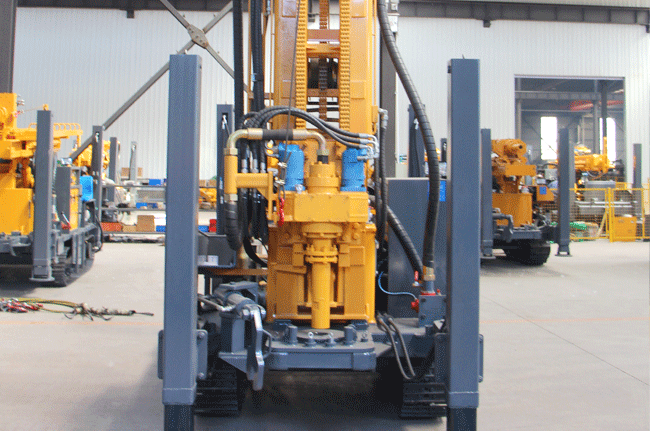

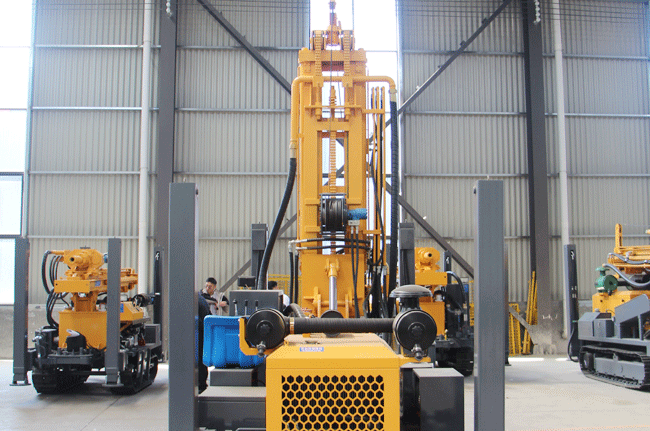

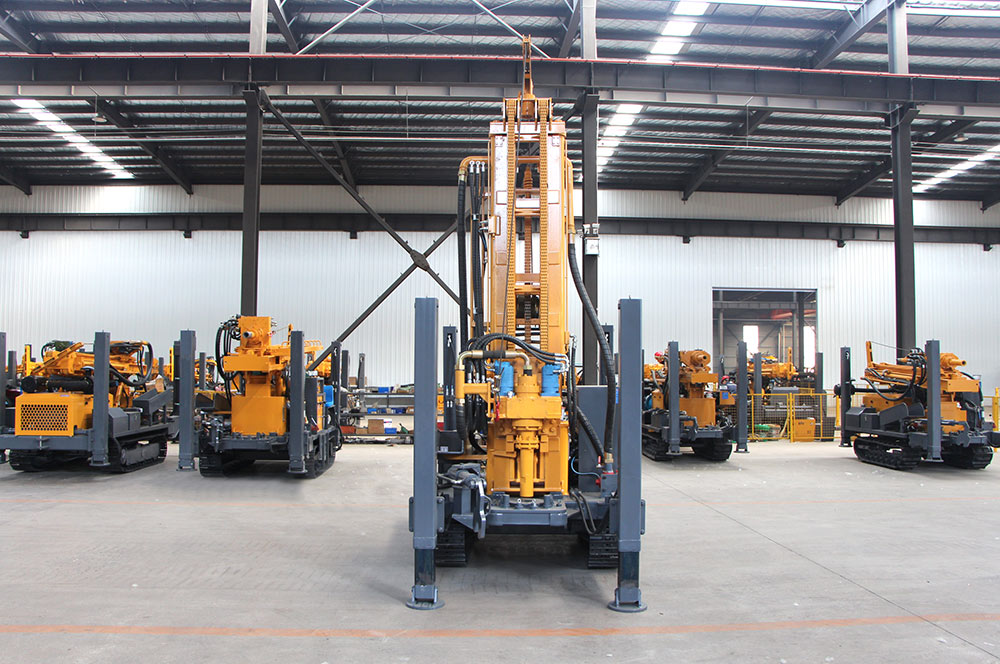

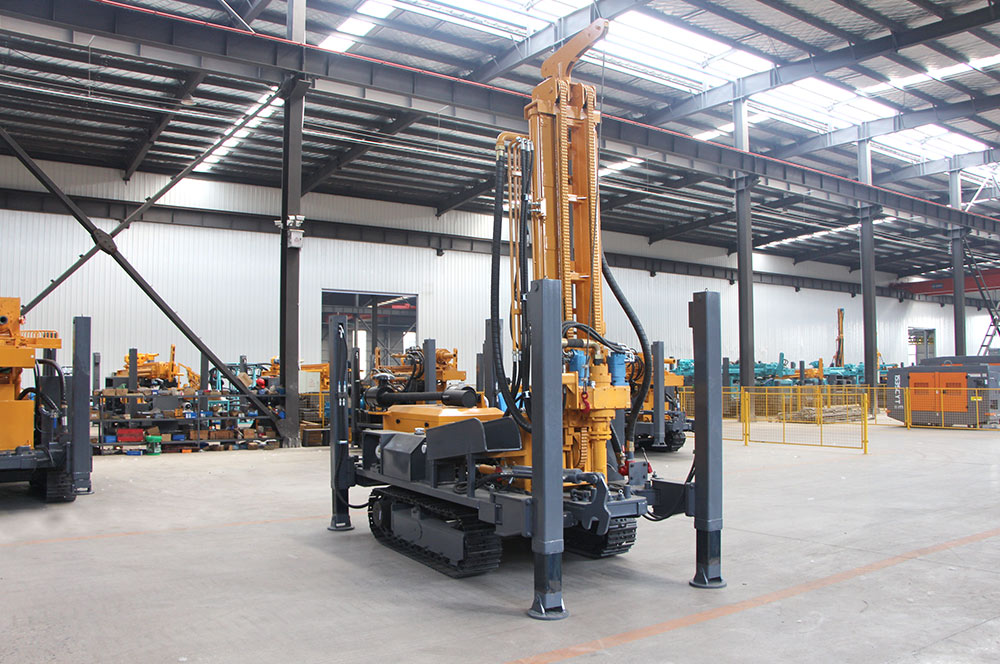

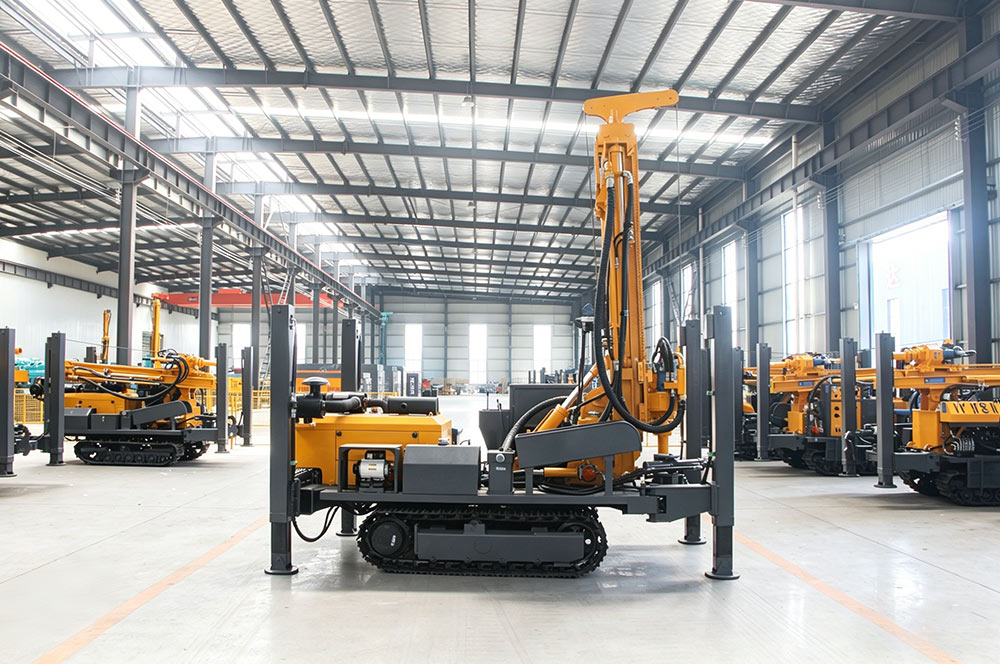

JTQZ‑260 Water Well Drill Rig | 260m Max Depth | 40m/min Fast Lifting | 76kW Power

Overview

▾

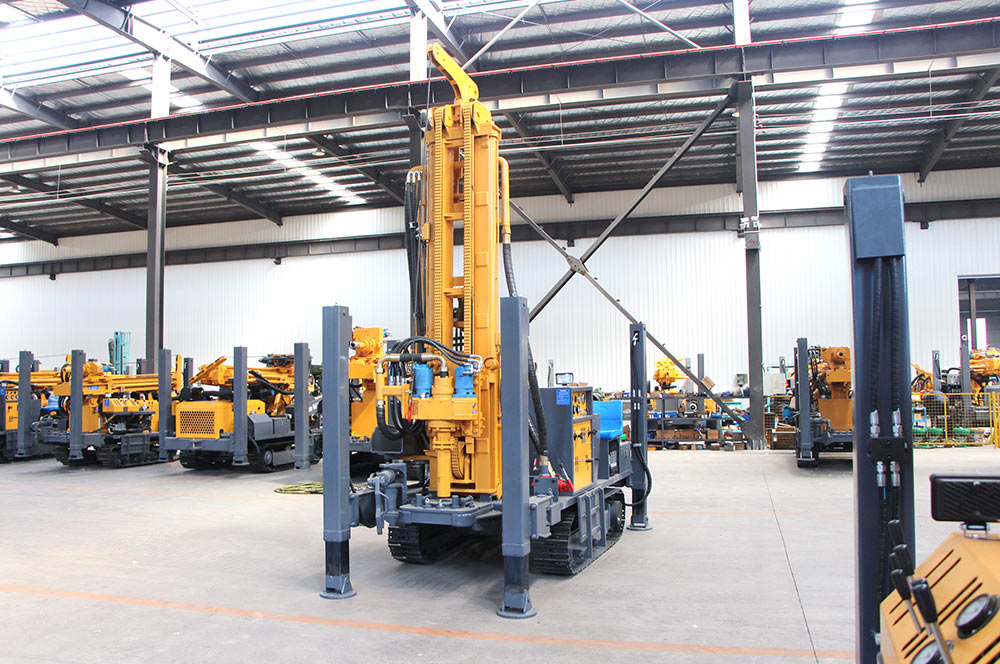

The JTQZ‑260 is a heavy-duty pneumatic water well drill rig, built for ultra-deep municipal and industrial water projects in complex geological areas.

Powered by reliable Yuchai 76kW engine, it reaches 260m maximum depth. Equipped with 15-ton lifting system and 40m/min fast lifting speed. It suits high-flow water supply, large industrial wells and hydrological monitoring, with complete ISO9001, CE and regional certifications.

Applications

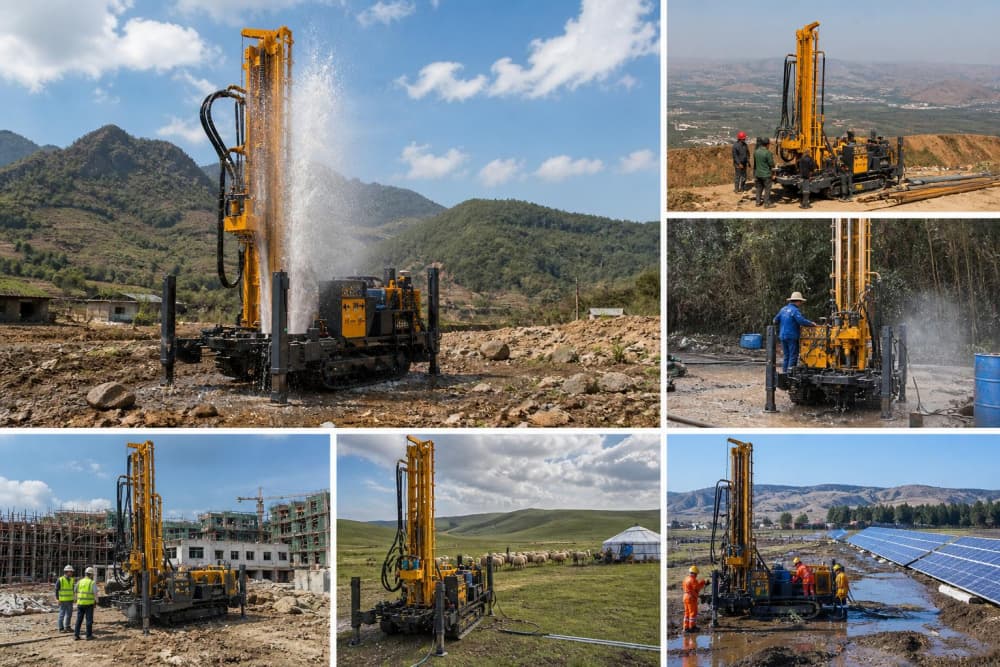

JTQZ-260 Deep Water Well Drill Rig with Fast Lifting for Irrigation & Hydrological Survey

· Large-scale municipal water supply projects
· High-flow irrigation for vast farmlands
· Deep industrial water well drilling
· Hydrological monitoring in mountainous & complex strata
· Deep water resource exploration in hard gravel and soft rock

Specifications

Model	JTQZ‑260
Total Machine Weight	5.7 t
Drilling Diameter Range	140‑305 mm
Max Drilling Depth	260 m
Single Stroke Feed Length	3.3 m
Travel Speed	2.5 km/h
Max Climbing Capacity	30°
Engine Brand & Power	Yuchai 4‑Cylinder \| 76 kW
Working Air Pressure	1.7‑2.5 MPa
Required Air Consumption	17‑31 m³/min
Spindle Rotation Speed	45‑70 rpm
Outrigger Stroke	1.4 m
Drill Pipe Diameter	76/89 mm
Single Drill Pipe Length	1.5/2.0/3.0 m
Nominal Lifting Force	15 t
Lifting Speed	40 m/min
Noise Level	84 dB(A)
Preventive Maintenance Interval	250 Hours
Global & Regional Certifications	ISO9001 · CE · NOM · RETIE · INMETRO · ANCAP

Exclusive Core Advantages

1. 260m Ultra-Deep Drilling | Stable power for tough formations ▾

Powered by 76kW Yuchai engine and high-pressure pneumatic system. It drills steadily down to 260m through compacted gravel and soft rock.

Reliable continuous performance makes it ideal for long-term municipal and industrial deep well projects.

2. 140-305mm Wide Drilling Range | For high-flow water wells ▾

The extended diameter range supports large-bore holes for municipal water networks and industrial water systems.

Compatible with multiple drill pipe sizes, it meets diverse construction demands for deep well projects.

3. 15t Lifting Force & 40m/min Speed | Higher working efficiency ▾

Strong 15-ton lifting capacity fully supports 89mm drill pipes at 260m depth.

With 40m/min fast lifting speed, it reduces stuck pipe downtime by 45% and greatly improves overall construction efficiency.

4. 5.7t Compact Chassis | Great mobility for complex terrain ▾

Total weight only 5.7t with 30° climbing ability. It moves freely on rocky mountains, farmlands and rural rough roads.

Stable structure ensures 10+ hours non-stop operation for large-scale continuous drilling work.

Get a Custom Quotation

· Factory-direct price, customized solutions for municipal, industrial and large agricultural water projects.

· Production Lead Time: 30-35 working days.

· Payment Terms: 30% deposit, 70% balance before shipment.

· Complete certification documents & global after-sales support. Favorable terms for bulk orders and international distributors.
